Picture an electric arc burning hot enough to melt steel in seconds. That's the whole idea behind fusion welding, and it's how most of the metal structures around you got built. So what is fusion welding, exactly? It's a generic term for an entire family of welding methods, not one single process.
Fusion welding encompasses MIG welding, TIG welding, stick welding, laser welding, and several other methods, all grouped together because each relies on melting to join dissimilar or similar metals.
This guide breaks down the main fusion welding processes, where they're used, and what gear protects you while you weld.
What Does Fusion Welding Actually Mean?
Fusion welding is the joining of two or more metal pieces by melting them, usually with a filler metal, until they form a continuous joint as they cool. It's one of the oldest, most widely used ways to permanently join materials, and it shows up in everything from car frames to oil pipelines.
The Core Idea of Fusion Welding: Melt, Pool, Solidify
A heat source, whether an electric arc, a flame, a laser, an electron beam, or even a magnetic field in the case of induction welding, melts the base metal at the joint. As the base metal and filler material melt together, they form a small molten pool, often called a weld puddle. When the heat source moves away, that puddle solidifies into a permanent bond known as a weld bead.
This happens across nearly every fusion welding process.
- Arc welding melts metal with an electric arc.
- Gas welding melts metal with a flame fueled by oxygen and a combustible gas.
- Laser welding and electron beam welding use a concentrated heat source to melt metal with extreme precision.
Fusion welding works best between metals of similar composition and close melting points, since large differences in melting point make the weld puddle harder to control. Different heat sources, same outcome: melted metal that solidifies into a strong bond.
Why Pressure Usually Isn't Needed In Fusion Welding
Most fusion welding processes don't require the external application of pressure because the heat alone melts and fuses the materials. Resistance welding is the exception, since it pairs electrical resistance with applied pressure to push the workpieces together while they heat.
Filler Metal in Fusion Welding
Whether a process uses filler metal, and what kind, depends on the job, falling into one of three categories: autogenous, homogeneous, or heterogeneous.
- Autogenous welding fuses only the edges of the base materials, with no added filler metal, which requires a tight fit between the pieces.
- Homogeneous welding uses filler material with a composition similar to the base metal. It relies on similar compositions and similar melting points to form a clean, even joint that adds strength to thicker work.
- Heterogeneous welding uses filler metal with a different composition, the approach welders reach for to join dissimilar metals with different melting points.
Fusion Welding Versus Non-Fusion Welding
Not every way of joining metal involves melting it. Non-fusion welding, also called solid-state welding, joins materials using pressure, friction, or heat below the melting point. Friction welding and diffusion bonding both fall into this category.
Key Differences at a Glance
- Melting Behavior: Fusion welding melts the base metal to form the joint, while non-fusion welding bonds materials without reaching the melting point.
- Joint Strength: Fusion welding generally produces a strong bond that can match or exceed the strength of the parent materials, making it suitable for high-stress applications.
- Heat Distortion: Non-fusion welding causes less thermal distortion, a better fit for thin or heat-sensitive metals like aluminum and stainless steel.
- Equipment Needs: Non-fusion methods often require less specialized equipment than fusion welding processes do.
When You Would Choose One Over the Other
Thick metal and heavy fabrication almost always call for fusion welding because of the strength it delivers. Thin or heat-sensitive metals, where warping is a concern, often do better with a non-fusion approach instead.
The Main Types of Fusion Welding
Fusion welding covers a wide family of welding processes. The simplest way to make sense of these fusion welding processes is to group them by heat source: electric arc, gas, electric resistance, and high-energy beams.
Arc Welding Processes
Arc welding is the largest category of fusion welding and includes several distinct processes, all of which use an electric arc as the heat source.
- Gas Metal Arc Welding : Also known as MIG welding, this process forms an arc between a continuously fed consumable wire electrode and the base metal, with a shielding gas protecting the weld puddle. It's one of the easiest fusion welding processes for beginners since the wire feeds automatically.
- Gas Tungsten Arc Welding : Also known as TIG welding, it uses a non-consumable tungsten electrode and an inert shielding gas to protect the arc and the weld. Filler material can be fed by hand, and some thin-metal jobs skip filler entirely.
- Shielded Metal Arc Welding : Commonly called stick welding, this process uses a self-shielded, consumable electrode to form an arc with the metal, tolerating dirty or rusty surfaces better than most other arc welding processes.
- Flux-Cored Arc Welding : A continuously fed, consumable electrode containing flux replaces or supplements shielding gas here, making it a solid choice among fusion welding processes for thicker base plates and outdoor work.
- Submerged Arc Welding : A continuous electrode runs beneath a blanket of flux that turns conductive when molten, shielding the weld from contamination, sparks, and fumes.
- Plasma Arc Welding : An arc forms between an electrode and a torch nozzle, ionizing gas into a plasma arc that's directed precisely at the workpiece for fast, clean melting.
(Image by YILMAZUSLU from Getty Images via Canva)
Gas Welding
Gas welding uses the heat from a burning fuel gas instead of an electric arc.
- Oxyacetylene Welding: Also called oxyfuel welding, this process uses a handheld torch fed with oxygen and acetylene, and the resulting flame melts the base metal.
- Fuel Ratio Control: The ratio of oxygen to acetylene controls how hot and clean that flame burns, and many welders keep an oxygen tank on hand for oxyfuel welding even when their main work runs on arc processes.
- Gear and Use Cases: Oxyfuel welding gear stays simple and portable. Oxyfuel welding and oxyacetylene welding see less use in heavy industry today, but the flame from an oxyfuel welding torch still earns its place for repair work and thinner material, and oxygen-fed flame cutting remains common on job sites.
Resistance Welding
Resistance welding processes pair electrical resistance with applied pressure to generate heat.
- Resistance Spot Welding: Two electrodes clamp the workpieces and pass current through a small, concentrated spot, melting metal there to form a weld nugget at the surface where the two pieces meet, with no oxygen or shielding gas required. This spot-welding method is a staple in the automotive industry for body panels.
- Resistance Seam Welding: Instead of conventional spot-welding electrodes, rotating-wheel electrodes produce a series of overlapping nuggets, creating a continuous joint along the seam.
High-Energy Welding Processes
High-energy fusion welding methods rely on a concentrated heat source to melt metal with exceptional precision.
- Laser Beam Welding: Laser welding directs a tightly focused laser beam onto the joint and is popular in high-volume manufacturing and for small components, such as medical devices, that demand precise heat control.
- Electron Beam Welding: A beam of high-velocity electrons, fired inside a vacuum chamber, generates heat on contact with the material, producing deep, narrow welds while introducing comparatively little heat into the surrounding surface.
- Induction Welding: Unlike other fusion welding methods, induction welding generates a magnetic field through a wrapped coil, heating the metal without any direct contact between the heat source and the workpiece. That contactless heating is what sets induction welding apart, and it's why the process shows up in high-speed pipe and tube manufacturing, where a fast, uniform heating cycle matters..
Solid Reactant Welding
Solid reactant welding is a less common type of fusion welding that relies on a chemical reaction between certain compounds, which generates heat as they combine and join two or more objects.
It's rarely the first method a working welder reaches for, and the equipment isn't something you'll find in a typical shop — but it's still classified as fusion welding because melting drives the joint.
Advantages and Disadvantages of Fusion Welding
Like any joining method, fusion welding is the right call for many jobs but not the best fit for others. It helps to weigh both sides before you decide which fusion welding processes and materials fit your project.
Advantages
- Strong, Lasting Joints: Fusion welding creates a metallurgical bond, not just a mechanical one, often producing a joint as strong as the base materials themselves.
- Wide Material Range: Fusion welding processes join a wide variety of metals and thicknesses, from thin sheet to heavy structural plate, and create reliable results across very different materials.
- Minimal Pressure Needed: Outside of resistance welding, most fusion welding methods skip clamping force, since heat alone melts and fuses the metal.
- Works on Complex Shapes: Fusion welding handles irregular or curved parts well, which is part of why it's common across the automotive industry and aerospace manufacturing, where engineers create intricate components that other joining methods can't reach.
- Automation-Friendly: Gas metal arc welding, gas tungsten arc welding, and laser welding all lend themselves to automation, improving speed and consistency, with electrode feeding handled automatically with minimal operator input.
(Image by Mady70 from Getty Images Pro via Canva)
Disadvantages
- Heat-Related Distortion: Intense heat during melting and solidification can warp the finished part or leave residual stress behind, especially in thinner materials.
- Heat-Affected Zone Weakness: Laser beam welding and electron beam welding are known for introducing comparatively little heat into the workpiece. They produce a smaller heat-affected zone than slower arc or gas processes, limiting how much the surrounding material is altered.
- Real Safety Hazards: Fusion welding involves intense light, sparks, fumes, and ultraviolet radiation, all of which demand genuine protective equipment.
- Skill-Dependent Quality: Even experienced welders can produce defects such as incomplete fusion or porosity without proper technique. Less experienced welders face a steeper climb, and inconsistent technique often compounds these errors..
- Some Materials Resist Welding: Certain high-carbon steels and cast iron crack easily under the rapid heating and cooling of fusion welding, and these tougher materials often require a slower technique.
Protecting Yourself While Fusion Welding
Every fusion welding process described above shares one thing: a heat source bright enough to damage unprotected eyes in seconds. The gear you wear isn't optional. It's part of doing the job right.
Why Eye Protection Comes First
An electric arc can reach several thousand degrees and emit ultraviolet and infrared radiation, which can damage the eyes even without direct staring. That's why auto-darkening welding lenses are standard now. They react the instant the arc strikes, protecting your eyes the moment you start the weld instead of relying on a hood flipped down beforehand.
Matching Lens Shade to the Process
Brighter processes, like high-amperage stick welding or spray-transfer MIG welding, call for a darker lens shade. Low-amperage TIG welding often calls for a lighter shade so you can see the weld puddle clearly. A gold welding lens reflects a large share of infrared radiation while still giving you a sharp, true-color view for precision work. Our welding lens color guide covers what each lens color does in more depth.
Quick tip: Match your lens shade to your amperage and process, not just habit. Too light risks eye strain and arc flash; too dark can hide the puddle you're trying to control.
For more on choosing the right auto-darkening welding lens for your setup, our best welding lens guide walks through shade ranges and helmet fit.

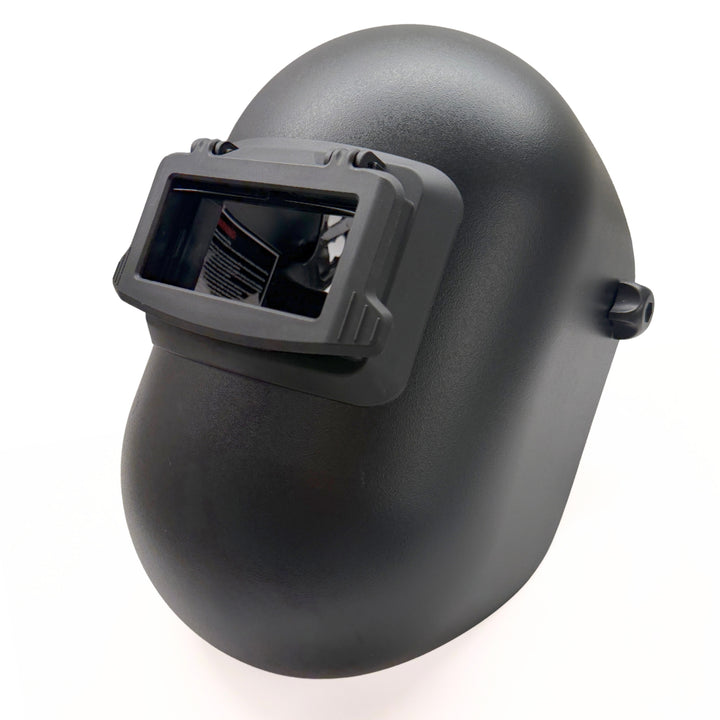

Hood Style Counts Too
The hood matters as much as the lens inside it. Welders running pipeline jobs or tight structural positions often prefer a Pipeliner or Sugar Scoop hood for better peripheral vision and airflow than a standard hood shape offers.
Where Fusion Welding Shows Up
Once you understand fusion welding, you start noticing it everywhere, from the car in your driveway to the steel beams next door.
Industries That Rely on It
A wide range of industries depend on fusion welding every single day, and the specific welding process tends to shift depending on the industry.
- Automotive Industry: Spot welding, gas metal arc welding, and laser welding join body panels, chassis, and exhaust systems. The automotive industry leans on automation to create thousands of consistent welds per shift.
- Aerospace: Gas tungsten arc welding and laser welding handle aircraft frames, fuel tanks, and turbine components where precision counts. Aerospace industries can't tolerate a heat-affected zone that compromises structural integrity, so process control matters enormously here.
- Shipbuilding and Pipeline Industries: Shielded metal arc welding and submerged arc welding join hulls, pressure vessels, and pipeline infrastructure across these industries.
- Construction: Fusion welding joins the structural steel and heavy machinery that form the skeletons of bridges and buildings, where a strong bond is non-negotiable.
- Home and Hobby Work: Compact MIG and stick welders make fusion welding accessible for garage fabrication, letting hobbyists create everything from trailers to custom furniture.
- Manufacturing Industries: More broadly, manufacturers rely on fusion welding to produce finished goods at scale, from appliances to industrial equipment.
Stick welding's popularity outdoors comes with a practical note on equipment. Stick electrodes absorb moisture from the air, and a damp rod causes porosity and weak welds. That's exactly why welding rod ovens exist: to keep electrodes dry during long outdoor jobs.
Frequently Asked Questions
What Is the Difference Between Fusion Welding and Arc Welding?
Arc welding is a category within fusion welding, not a separate thing. Fusion welding is the broader term for any process that joins materials by melting them, while arc welding specifically uses an electric arc as the heat source and includes MIG, TIG, and stick welding.
Which Fusion Welding Process Is Easiest for Beginners?
Gas metal arc welding, or MIG welding, is generally the most beginner-friendly fusion welding process since the wire feeds automatically. Stick welding is fairly accessible, too, though it takes more practice to produce clean, consistent welds.
Is Fusion Welding Stronger Than Brazing or Soldering?
Generally, yes. Fusion welding creates a metallurgical bond by melting the base metal itself, which typically exceeds that of brazing or soldering in terms of strength, since those methods join materials without melting the base metal. The tradeoff is that brazing and soldering cause less heat distortion, which is useful on thin or heat-sensitive parts.
Can You Fusion Weld at Home Without a Dedicated Shop?
Yes, for many fusion welding processes. Compact MIG and stick welders are widely used in garages and home shops. Proper ventilation, a non-flammable work surface, and the right protective gear matter no matter the scale.
Does Fusion Welding Require Certification to Do Professionally?
Hobby fusion welding doesn't require certification. Structural, pressure-vessel, and pipeline work governed by industry codes typically requires a welder to pass a test specific to the process and position, with exact requirements varying by industry and employer.
What Causes Most Failed Fusion Welds?
Incomplete fusion and porosity are two of the most common defects. Both usually trace back to incorrect heat settings, poor joint preparation, contamination on the base metal, or moving through the weld too fast. Clean metal and correct settings prevent most of it.
Can Fusion Welding Be Done Outdoors or in Wind?
It depends on the process. Shielded metal arc welding is largely self-shielded and handles wind well, which is part of why it's a pipeline favorite. Gas metal arc welding and gas tungsten arc welding rely on shielding gas. The wind can blow the gas away and cause porosity unless windbreaks are used.
What's the Cost Difference Between Fusion Welding Equipment Types?
Entry-level MIG and stick welders are the most affordable options for home use. Gas tungsten arc welding equipment costs more upfront for its precision components. Laser welding and electron beam welding sit in their own category, with setup costs that only make sense for industrial-scale production.
Conclusion
So, what is fusion welding when you boil it all down? It comes down to one core idea: melting metal, usually with a filler material, so it fuses into one solid, continuous joint as it cools. That single idea covers a wide range of welding processes, from gas metal arc welding and gas tungsten arc welding to laser welding, electron beam welding, induction welding, and several other fusion welding methods, each suited to different metals, thicknesses, and jobs, and each able to create a joint built to last.
Which process makes sense for you depends on the metal you're working with, the equipment on hand, and the joint the job demands. But one thing stays constant across every fusion welding process: the heat source involved demands real eye and hand protection, every time, whether you create a small repair weld at home or help create a structure that thousands of people will rely on.
