Welding Lens Color Guide: How to Choose the Perfect Tint for Maximum Safety & Clarity

When you're staring at a welding arc for hours, the welding lens color you're using makes a big difference. The tint on the lens is responsible for protecting your eyes from harmful UV and IR radiation. As such, using the wrong lens shade or color can cause eye strain, poor visibility, and even long-term eye damage.

These days, staying safe doesn’t mean just blocking bright light from the welding arc. You need to pick the exact lens that will help you work efficiently with a clear view of your materials. Thankfully, newer lenses let you see more naturally while still blocking harmful rays.

This is thanks to newer lens tech, like auto-darkening systems and fixed high-quality lenses. It means your eyes suffer less fatigue and you can see details more clearly during every weld.

At Ridge Products Welding, we’ve put your vision first. Our lenses reduce eye strain and protect against intense light. They help welders see exactly what they need to, from tiny arcs in TIG welding to high-amp stick welding burns. No matter what kind of welding you’re doing, you can stay safe and comfortable.

What Does Welding Lens Color Do? The Science Behind Tint and Vision

Most people don’t think welding lens colors matter, but each tint has its own role. A lens’s main job is to filter out specific harmful wavelengths, such as UV radiation, IR radiation, and intense visible light. It does this while ensuring you can see the welding work clearly.

Different colors filter different portions of the light spectrum. For example, green lenses have traditionally been the standard because they effectively block a lot of UV and IR light. But true color lenses, such as blue or gray tints, offer better color accuracy. There’s also less distortion when welding with them on. This can be especially helpful for tasks like TIG welding.

The right welding lens color also reduces the eye strain welders suffer from when they’re exposed to harsh glare or bright light. Proper welding safety glasses or hoods with the correct lenses reduce glare and harsh lighting. This means your eyes don’t tire easily, even after hours of work.

Welding Lens Color Shades: From Light to Dark

Lens shade numbers tell you how dark a lens is. This can range from light tints around 1 and 2 for grinding, up to 13 or higher for heavy welding like stick welding. The shade you choose should depend on the welding process and the intensity of the light you’ll be working with.

Lighter shades let in more visible light. So, you see more clearly, but your eyes aren’t as protected. On the other hand, darker shades block out more light, protecting you from intense heat, bright light, and arc flashes. However, you might miss small details if they’re too dark.

For example, “1/1–3” typically refers to very light shades suitable for non-welding tasks, while you can use dark shade numbers like “10–13” for high-amp welding.

Match the shade number to your welding process’s amperage and method to keep your eyes safe and improve the quality of your weld.

Welding Lens Color Chart: Choosing the Right Tint for Your Work

We’ve made selecting your welding lens based on your exact task easier than ever. Here’s a practical welding lens color chart that matches welding processes, amperage, shade numbers, and lens colors.



---



Important Considerations:

• Personal Comfort & Vision: Your personal vision and comfort, as well as the specific lighting conditions of your workspace, can influence your ideal shade. If a shade feels too dark or too bright, adjust it by one shade number.

• True Color Lenses: While they usually cost more, we highly recommend "true color" or "high-definition" lenses across all processes. They offer superior clarity, reduce eye strain, and give you a better perception of the weld puddle's true color.

• Manufacturer Guidelines: Always consult the recommendations from your welding equipment manufacturer and your welding helmet's specifications.

• Safety Standards: This chart is a general guide. For specific applications and to ensure compliance, always refer to recognized safety standards such as ANSI Z87.1 (for eye and face protection) in the United States, or equivalent standards in your region (e.g., EN 175 in Europe). Your eyes are irreplaceable, so invest in proper protection.

Types of Welding Lens Colors and Their Benefits

Here’s a quick guide to popular colors and why they might be your best option:

Green Lenses

Green has always been the traditional choice and is excellent at filtering UV and IR radiation. It provides solid protection during most welding processes. However, it may distort some signal colors. Some precision welders look for alternatives when detail is critical.

Gold Welding Lens

Gold welding lenses reflect heat and help reduce glare, which keeps your eyes more relaxed, especially during high-amp operations like stick welding or plasma cutting. The gold tint reduces eye strain by balancing visible spectrum light and blocking harmful UV and intense light.

True Color (Light Blue/Gray)

True color lenses give a much clearer, more accurate portrayal of the welding environment. They provide superior color accuracy, which is essential for tasks requiring attention to detail, like TIG welding or if you’re working on aluminum. This lens color also reduces glare and helps welders endure longer welding sessions with less fatigue.

Magenta Welding Lens

Magenta lenses boost contrast and make it easier to see the edges of the weld puddle, which is very useful in precision welding such as TIG or aluminum work. It also helps with molten metal observation and improves visibility in low-light conditions behind the welding hood.

Blue Welding Lens

Blue lenses offer good glare reduction and balance out color rendition. They’re a popular choice among MIG welding professionals who need to see the arc clearly while staying protected from bright and neon blue flashes.

Yellow / Amber Welding Lens

Yellow and amber lenses shine in low-light environments where other glasses might leave welders squinting. They improve contrast when working with darker metals and can help with ambient lighting issues in some welding helmets.

Passive Lenses vs Auto Darkening Lenses

When it comes to welding glass technology, there are two main types: passive and auto-darkening welding lenses.

• Passive lenses remain a fixed shade and rely on the welder to flip the lens up or down between welds. These are simple and reliable, but they can interrupt your workflow.

•  On the other hand, auto-darkening lenses automatically switch from a light state to a dark shade when the welding arc strikes. This protects you instantly from intense light, UV, and IR radiation while allowing you to see your work clearly before and after the weld.

With these basic tips for choosing welding lens color and tint options under your belt, you’re better equipped to make the safe and smart choice for your eyes and your welds. If you want to gear up correctly, Ridge Products Welding has you covered with high-quality options designed with your comfort and safety in mind.

Safety First: How Proper Lens Color Protects Your Eyes

When it comes to welding, proper eye protection is an absolute must. The welding lens color you choose helps to shield your eyes from hazardous light sources. Intense UV radiation, IR radiation, and dangerous blue light emitted by the welding arc can cause serious damage if not filtered correctly. These rays can lead to problems like photokeratitis, which is essentially a painful sunburn on the eye, or long-term vision degradation.

The good news is that high-quality welding lenses help block harmful UV and IR radiation effectively. Furthermore, the tint in the lens filters intense visible light and reduces eye strain, so you see clearly while protecting your eyes.

Your gear needs to meet solid standards like ANSI and OSHA rules. ANSI (American National Standards Institute) and OSHA (Occupational Safety and Health Administration) both have guidelines for welding filters, including minimum shade numbers and protection levels against dangerous radiation.

Starting with a darker lens, such as in the range of 10-13 for most welding, is a smart strategy. You can then adjust the shade based on the welding processes you’re using and your own personal comfort. Using a lens that is too light exposes your eyes to intense heat and bright light, increasing the risk of damage and headaches. Choosing the correct shade number and welding lens color is your best defense against both immediate and cumulative eye injuries.

How to Pick the Perfect Welding Lens Color for Your Applications

Picking your ideal welding lens color starts with understanding the welding processes you perform most frequently and your working environment.

Match Lens Color to Welding Type

If you're mainly doing TIG welding, a lighter shade with colors like magenta or true color can help you observe the weld puddle and molten metal more clearly. For more serious jobs like stick welding or plasma cutting, darker lenses, green lenses, or gold welding lenses often offer better protection against the intense light and heat generated.

Consider Your Existing Gear

Next, consider the gear you already use. Make sure the lens fits your traditional welding helmets or welding goggles, and locks in properly. Here at Ridge Products Welding, we offer a wide collection of lenses compatible with most helmets. You can always check our welding lens color chart to match your process perfectly.

Adapt Lens Color to Materials and Conditions

It’s also smart to switch lens colors depending on materials or the site’s lighting conditions. For example, yellow or amber tints might improve visibility when you’re welding on dark metals or working in low-light environments. When welding outdoors where sunlight can interfere, a darker shaded lens helps protect against glare.

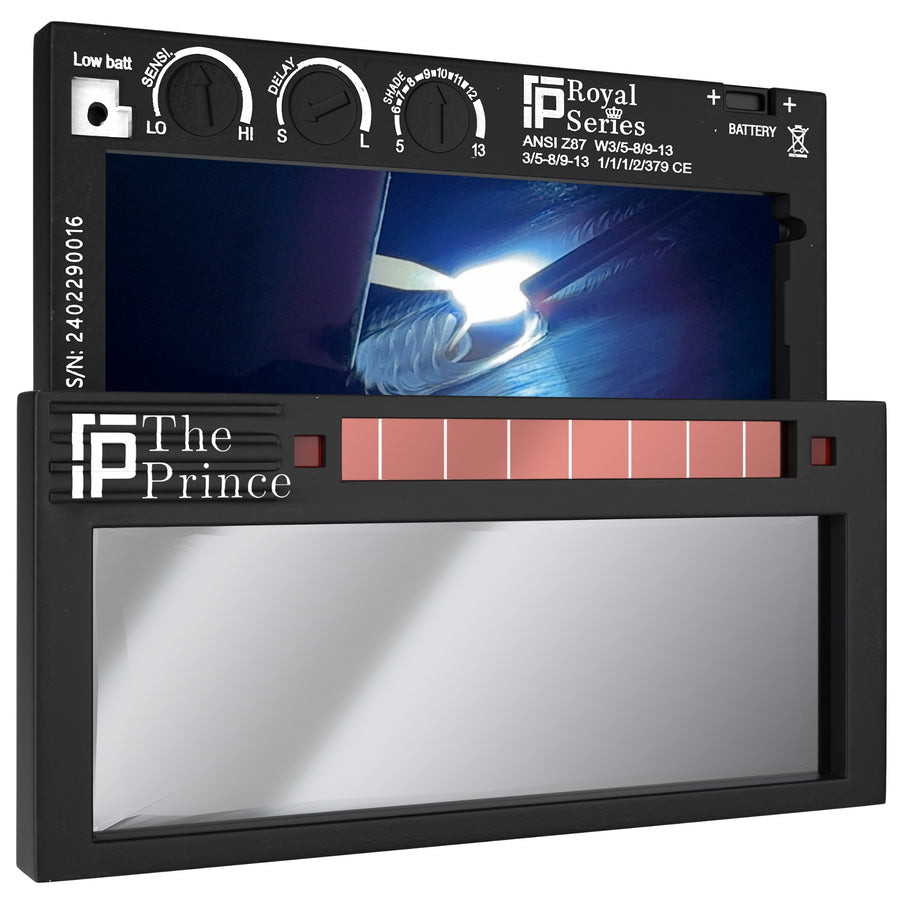

Auto Darkening Welding Lens Technology

Auto darkening welding lens technology is a big advancement. These lenses remain clear, so you see everything before the arc, then darken instantly when welding starts. This lets you focus on your task without interrupting your flow to flip your hood. Auto darkening lenses provide customizable shade settings, making them versatile for many welding processes.

Comparing Welding Lens Colors: Visual Clarity, Comfort, and Safety

Here’s a quick breakdown of popular welding lens colors and their benefits:

When Should You Upgrade Your Welding Lens Color Shade?

If you notice persistent eye strain, headaches, or you have difficulty seeing the weld puddle or arc clearly, it’s time to rethink your lens color or shade. Professionals often switch to auto darkening welding lens options for adaptability and better all-around protection.

Studies confirm that better lens technology, like true color and gold welding lenses, improve visual comfort and reduce long-term eye damage risk. Personal preference and specific tasks will guide the best choice for you.

Ridge Products Welding Makes Lens Selection Easy

At Ridge Products Welding, we tailor our selection to fit your needs and keep you safe. We offer a wide variety of lens types, colors, and shade numbers that meet high industry standards. We test every product against ANSI and OSHA regulations for welding safety glasses and helmets.

Why Welders Love Our Products

• Durable lenses that are made from premium, impact-resistant materials.

• Wide range of modern welding lens colors, including popular true color and gold welding lens options.

• Customer reviews highlight sharper vision and significantly reduced eye strain.

• All products meet or exceed safety standards for your peace of mind.

• As welders ourselves, we understand the importance of reliable eye protection.

Frequently Asked Questions About Welding Lens Color

What Lens Shade Do I Need for TIG at 100 A?

For TIG welding around 100 amps, we recommend a shade number between 10 and 13. Colors like magenta or blue help with clarity during this precise work.

Can I Use the Same Lens for MIG and Stick Welding?

Often, you’ll need darker shades for stick welding (around 11-14) than MIG ( 10-13). Using an adjustable auto darkening welding lens is a great way to simplify this.

How Often Should I Replace My Lens?

Replace your lens when it gets scratched, cracked, or shows signs of wear, as these reduce protection and clarity. Inspect your welding glass regularly.

Is Auto‑Darkening Better Than Fixed?

Auto darkening lenses offer convenience, clear views before welding, and customizable shades. Fixed lenses are reliable but less flexible.

Can I Weld Outdoors with a Lighter Shade?

Generally, no. Outdoor conditions with ambient sunlight require darker lenses to reduce glare and protect from UV exposure.

Final Thoughts on Welding Lens Colors & What They Mean

The right shade and tint protect your eyes from harmful UV and IR radiation, and enhance your ability to see the weld puddle and welding arc clearly. Keep your eyes safe and see clearly while doing MIG, stick, or TIG work with the right lens.

At Ridge Products Welding, we’re proud to provide lenses and helmets that guarantee safety, comfort, and clarity so you can focus on your craft every day. Let us help you protect your vision for years of strong, clear welds ahead.
